Elastomer bellows seals

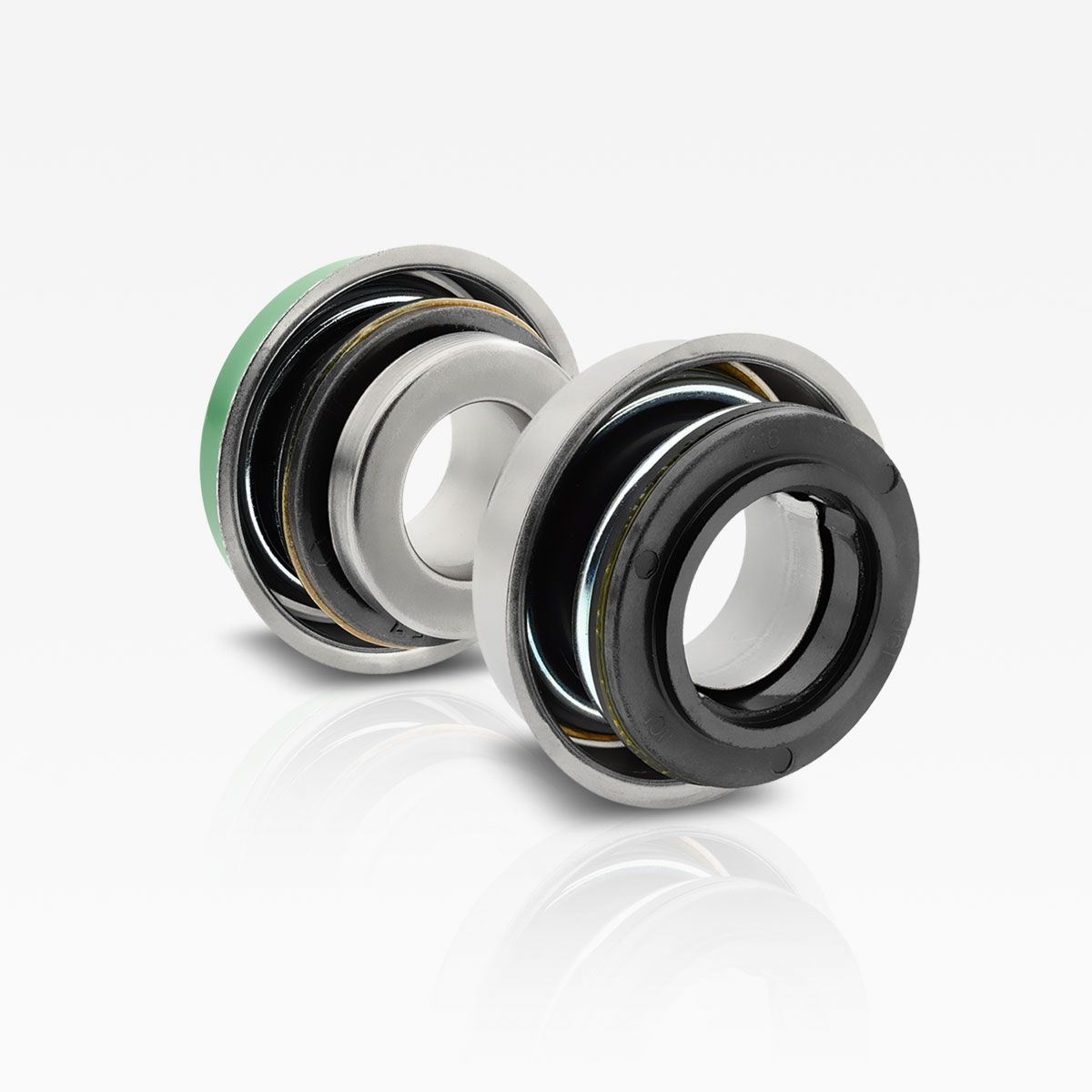

Mechanical seal CAMPELLO (elastomer bellows seals)

Technical features

  • Single spring
  • Unbalanced
  • Bi-directional
  • Elastomer bellows

Operating limits

  • P = 72 PSI
  • T = -95 to 320°F
  • V = 32 ft/s
Description Materials
Primary rings carbon graphite, silicon carbide, tugsten carbide
Mating rings silicon carbide, tugsten carbide, ceramic
Secondary seal NBR, EPDM
Metal parts Stainless 304

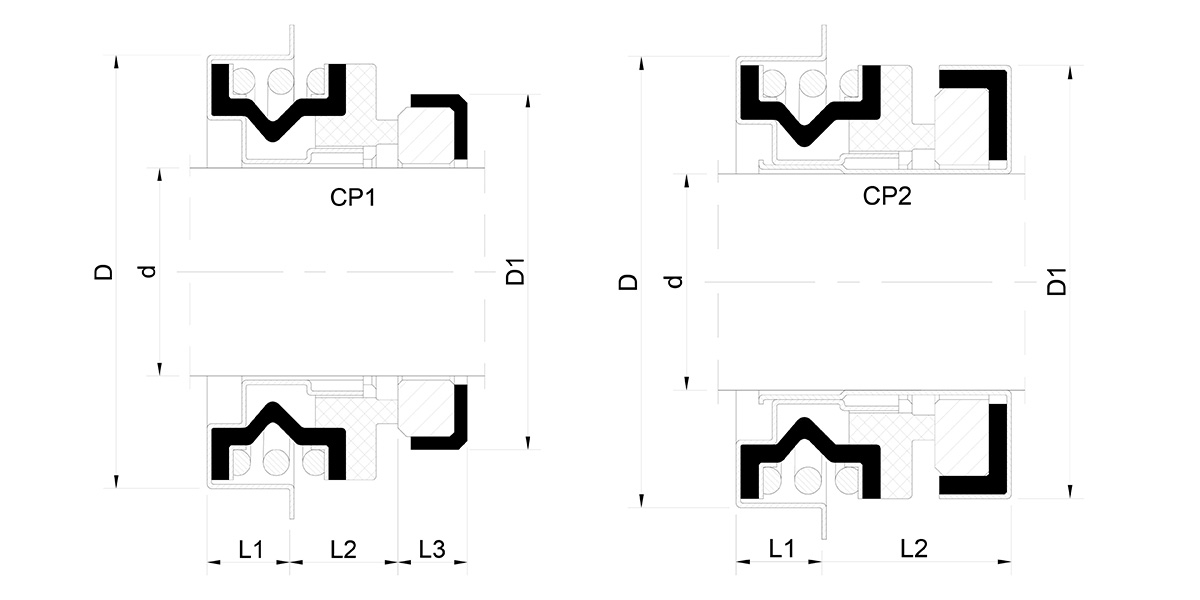

Mechanical seal CAMPELLO (technical drawing)

Product description

A full-convolution elastomer bellows provide maximum flexibility in compensating for shaft movement while torsional stress on the bellows is controlled by a dent and grove positive drive arrangement.

Small centrifugal water pumps, sump pumps, submersible and swimming pool pumps. Pressures to 72 PSI. Temperature: -95°F to +320°F.

Available products

  • Campello (CP)

Stationary Seats

  • BR2 (standard)
product detail [pdf: 191.92 KB]

complete catalog [pdf: 5.71 KB]
