Elastomer bellows seals

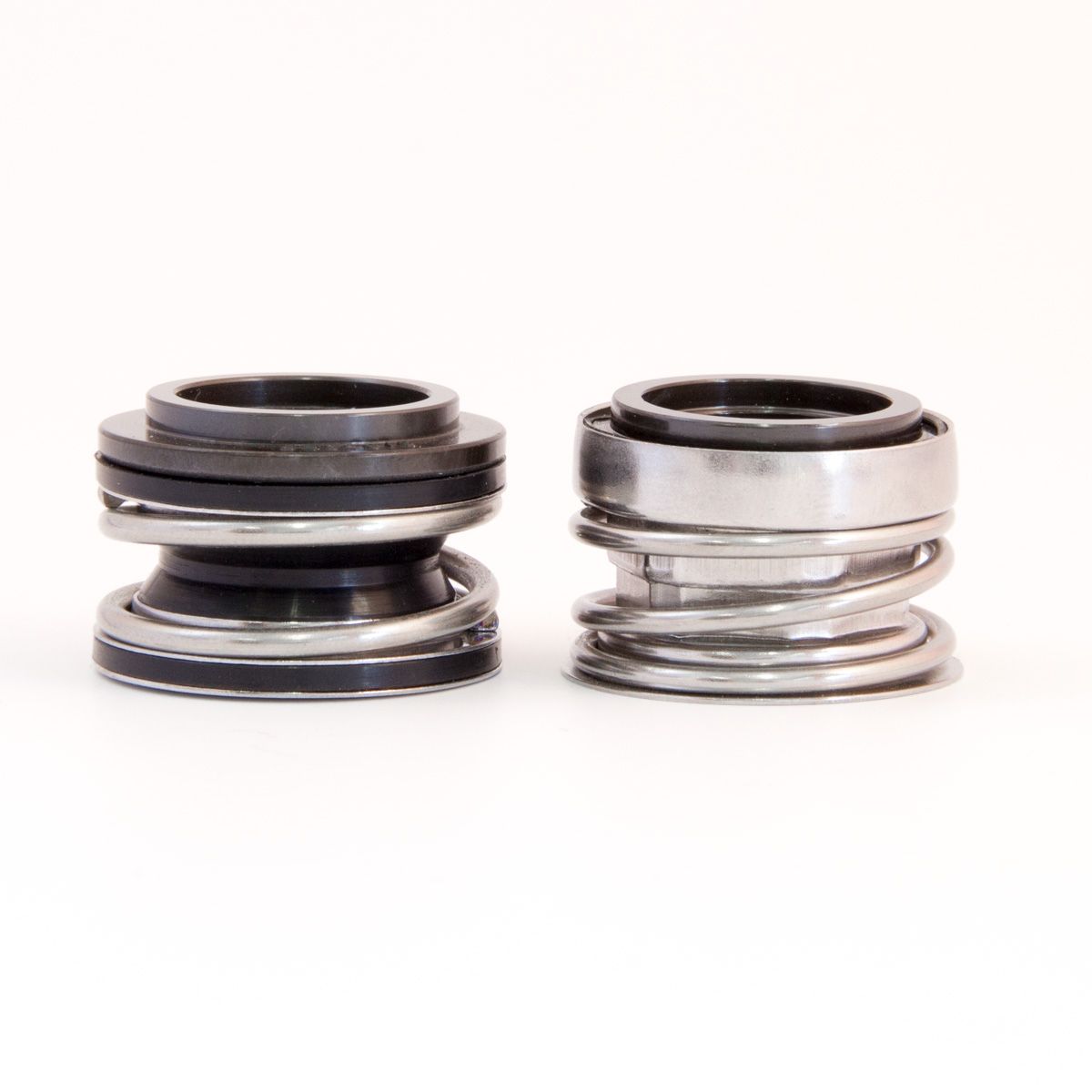

Mechanical seal MOSCOW (elastomer bellows seals)

Technical features

  • Single seal
  • Unbalanced
  • Bi-directional
  • Elastomer bellows

Operating limits

  • P = 72 PSI (MA1) - 150 PSI (MA2)
  • T = -95 to 320°F
  • V = 32 ft/s
Description Materials
Primary rings silicon carbide, carbon graphite, phenolic graphite, tungsten carbide
Mating rings silicon carbide, ceramic, tungsten carbide
Secondary seal NBR, EPDM, Viton
Metal parts Stainless 316

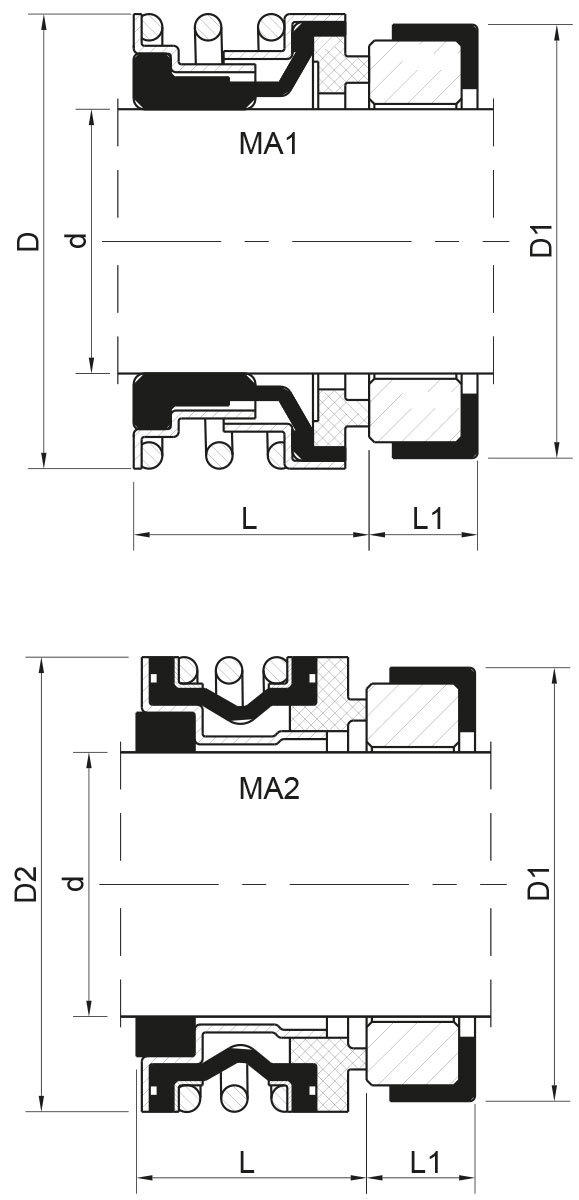

Mechanical seal Miami (technical drawing)

Product description

Compact, unitized, single spring, elastomer bellows seal. The factory-assembled, one piece design permits fast, easy installation and the full-convolution elastomer bellows provide maximum flexibility in compensating for shaft movement and wear.

Available products

  • Miami 1 (MA1)
  • Miami 2 (MA2)

Stationary Seats

  • BR2 (standard)
  • BR7
product detail [pdf: 212.47 KB]

complete catalog [pdf: 5.71 KB]
