Buenos Aires

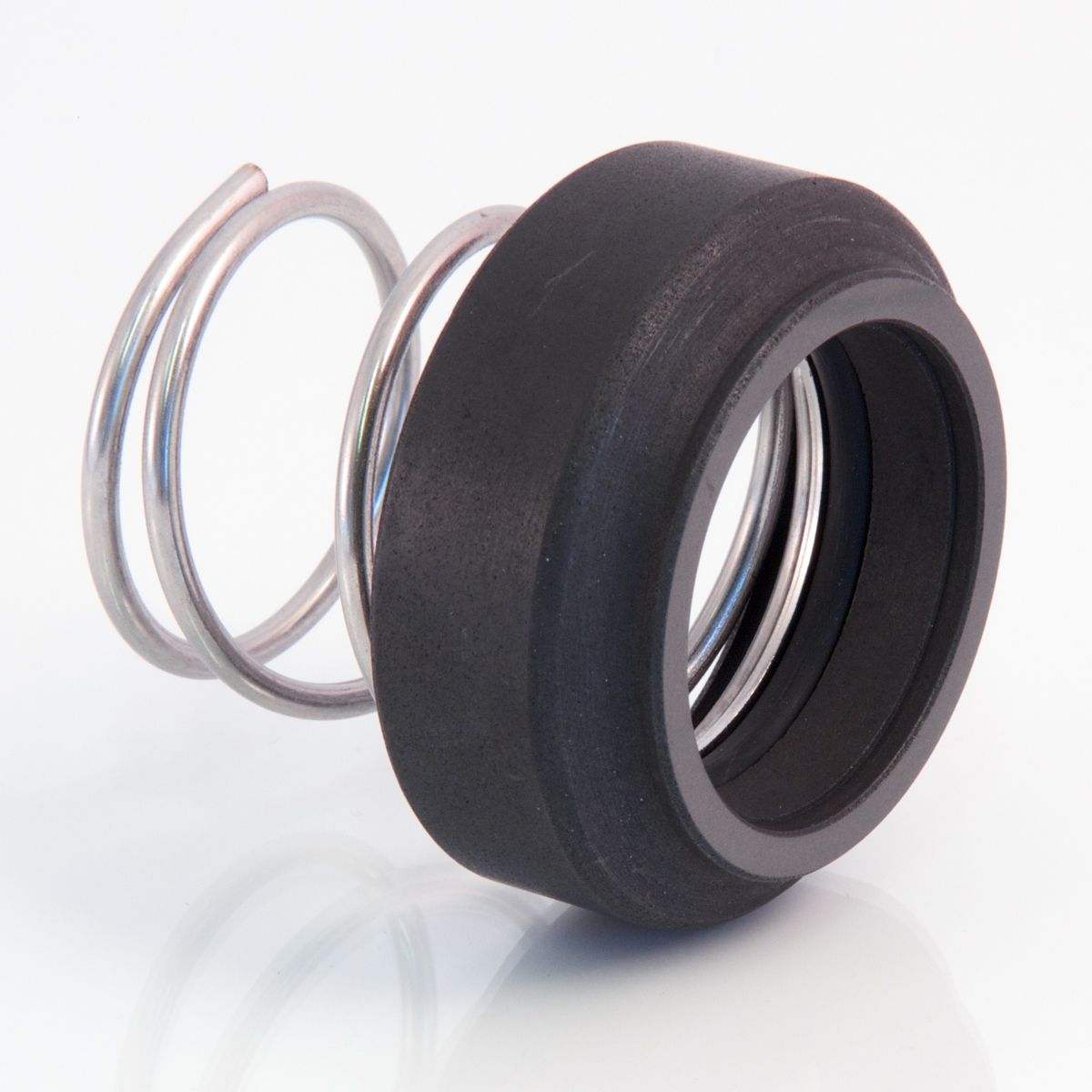

Conical spring o-ring mounted seals

Technical features

• Single seal
• Unbalanced
• Conical spring
• Uni-directional
• To DIN 24960

Operating limits

• P = 145 PSI
• T = -95 to 320°F
• V = 49 ft/s

Description	Materials
Primary rings	carbon graphite
Mating rings	silicon carbide, staninless, ceramic
Secondary seal	NBR, EPDM, Viton
Metal parts	Stainless 304

Product description

The Conical Spring ‘O’-Ring Mounted Type Seals offered by Cityline are extremely popular seals. These robust, technically procient seals.

The proven e cient design and wide choice of ‘O’-Ring and face materials enable these seals to be utilised in a large variety of applications. Suited for pumps, mixers, agitators, compressors and other rotary shaft equipment.

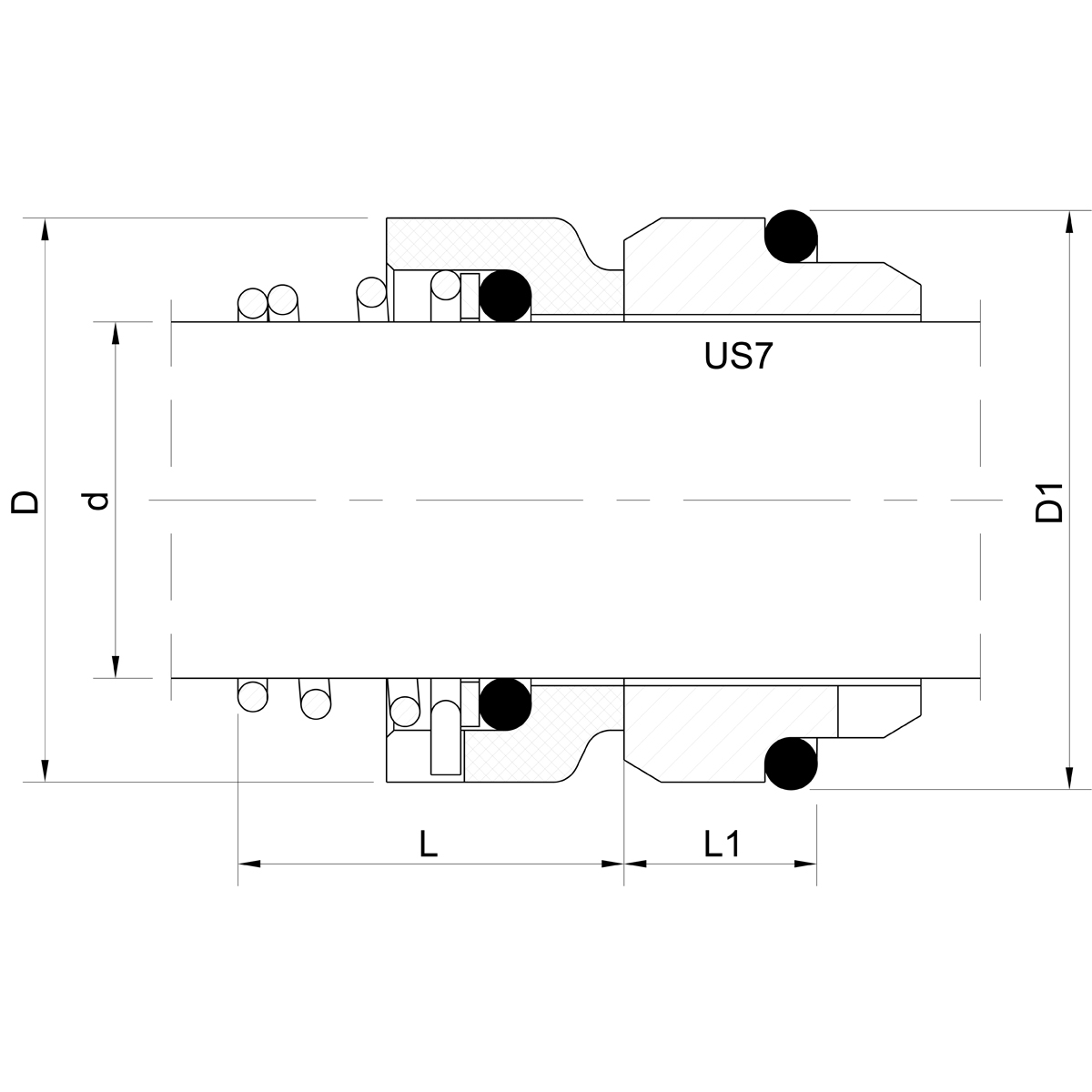

Stationary Seats

• US7 (standard, to DIN 24960)
• US5 (to DIN 24960)
• US3

product detail [pdf: 170.33 KB] complete catalog [pdf: 5.71 KB]
