Wave spring seals

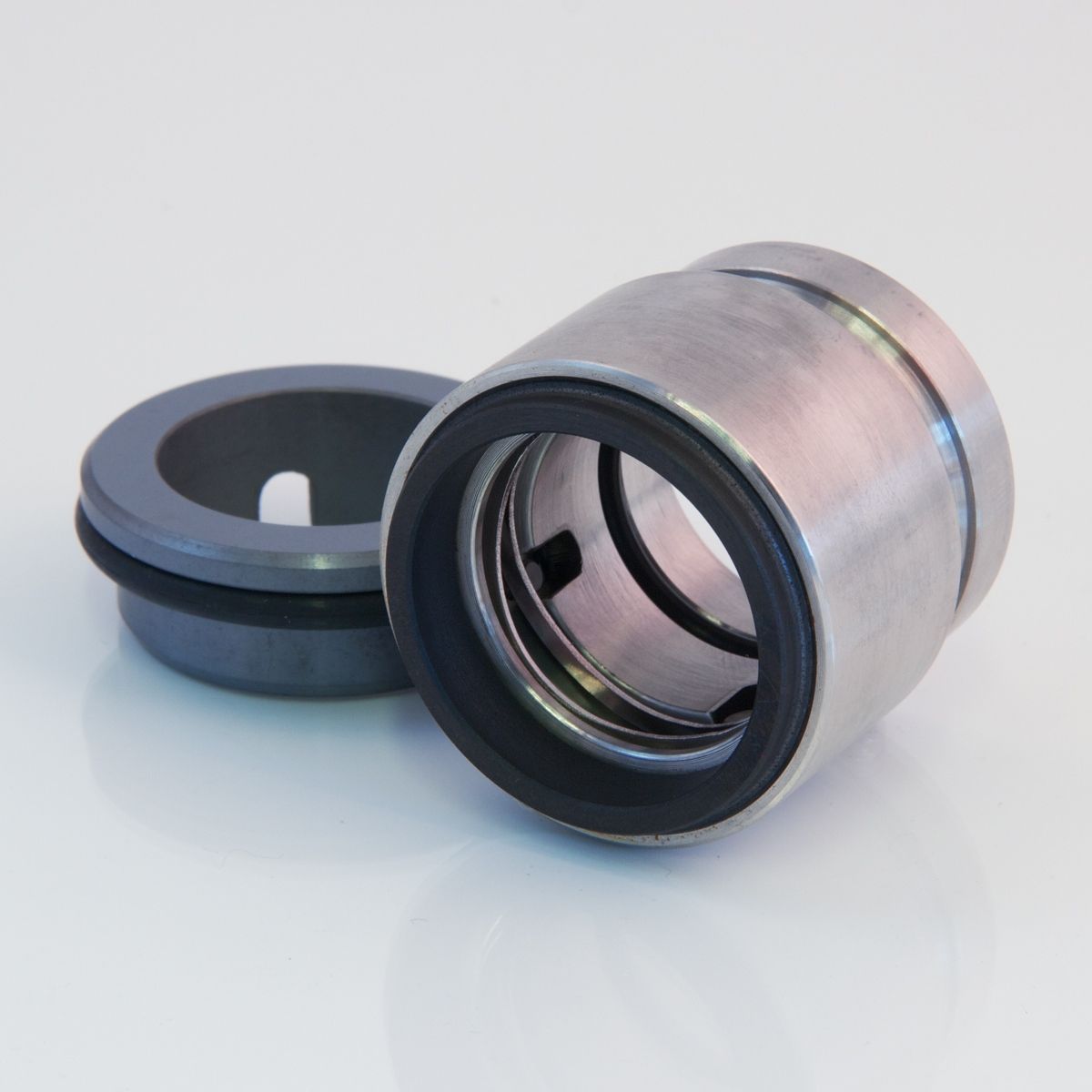

Mechanical seal AMSTERDAM (wave spring seals)

Technical features

  • Single seal
  • Balanced
  • Bi-directional
  • Wave spring
  • To DIN 24960

Operating limits

  • P = 348 PSI
  • T = -95 to 320°F
  • V = 65 ft/s
Description Materials
Primary rings silicon carbide, tungsten carbide, carbon graphite
Mating rings silicon carbide, carbon graphite, tungsten carbide, ceramic
Secondary seal HNBR, NBR, EPDM, Viton
Metal parts Stainless 304

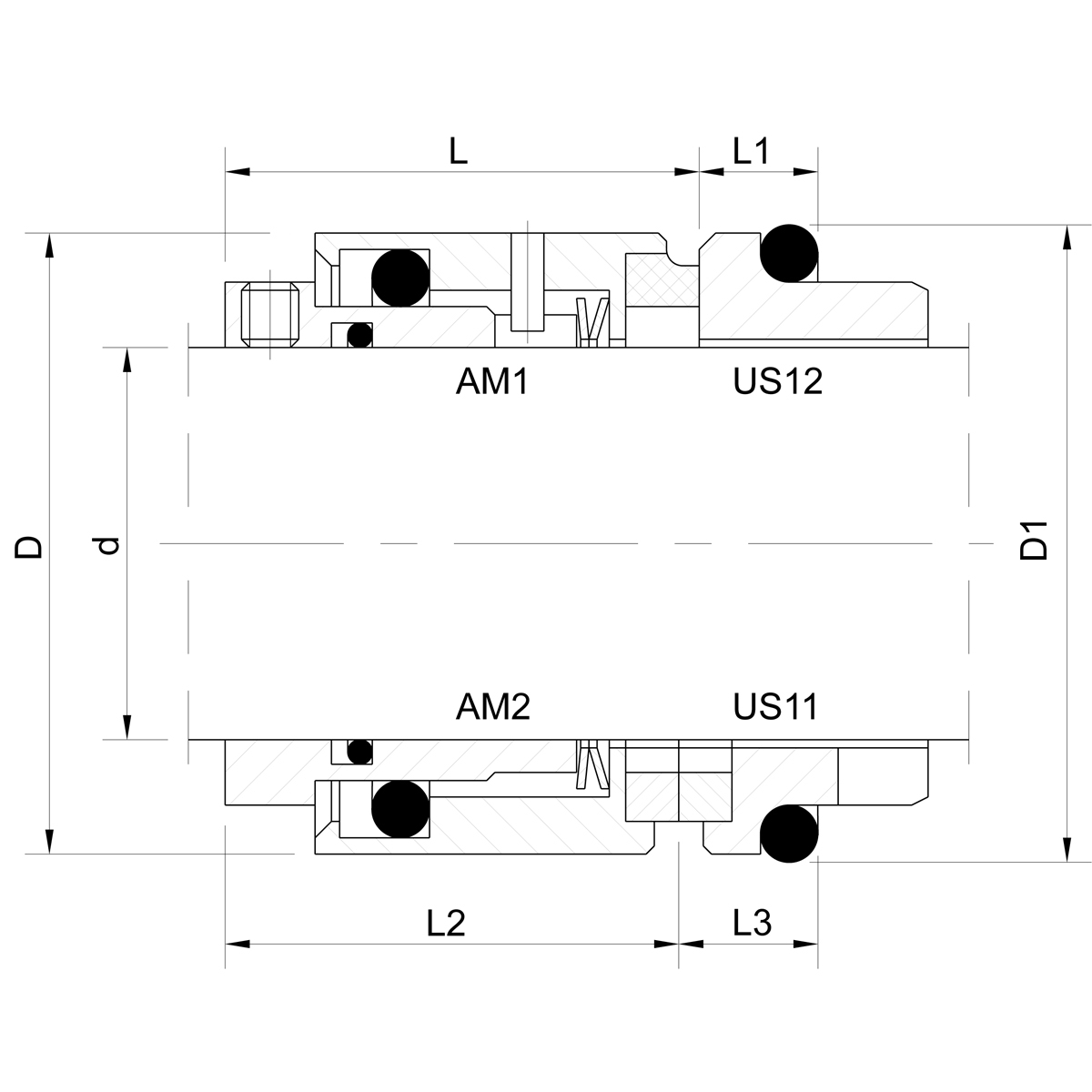

Mechanical seal AMSTERDAM (technical drawing)

Product description

Wave spring seal, O-ring design, unitized construction, flexible design compensates for shaft misalignment for high performance and longer seal life.

Wide usage in chemicals and corrosives. Pressures to 348 PSI. Temperature -95°F to +320°F.

Available products

  • Amsterdam 1 (AM1)
  • Amsterdam 2 (AM2)

Stationary Seats

  • For AM1: US12 (to DIN 24960)
  • For AM2: US11 (to DIN 24960)
product detail [pdf: 163.07 KB]

complete catalog [pdf: 5.71 KB]
