Multiple springs seals

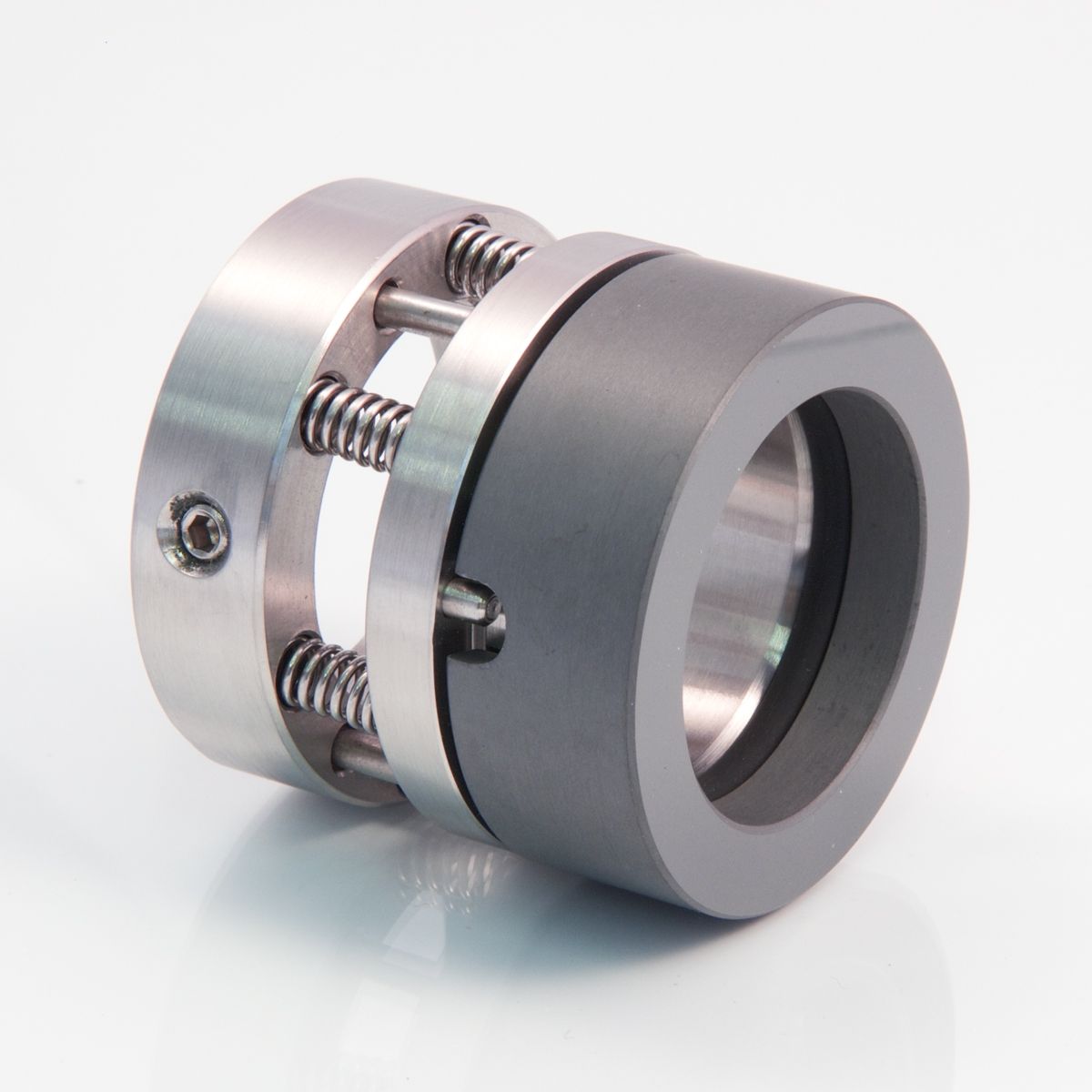

Mechanical seal PARIS (Multiple springs process seals)

Technical features

  • Single seal
  • Unbalanced
  • Bi-directional
  • Multiple springs

Operating limits

  • P = 174 PSI
  • T = -95 to 320°F
  • V = 82 ft/s
Description Materials
Primary rings silicon carbide, ceramic, tungsten carbide
Mating rings silicon carbide, carbon graphite, tungsten carbide
Secondary seal NBR, EPDM, Viton
Metal parts Stainless 304

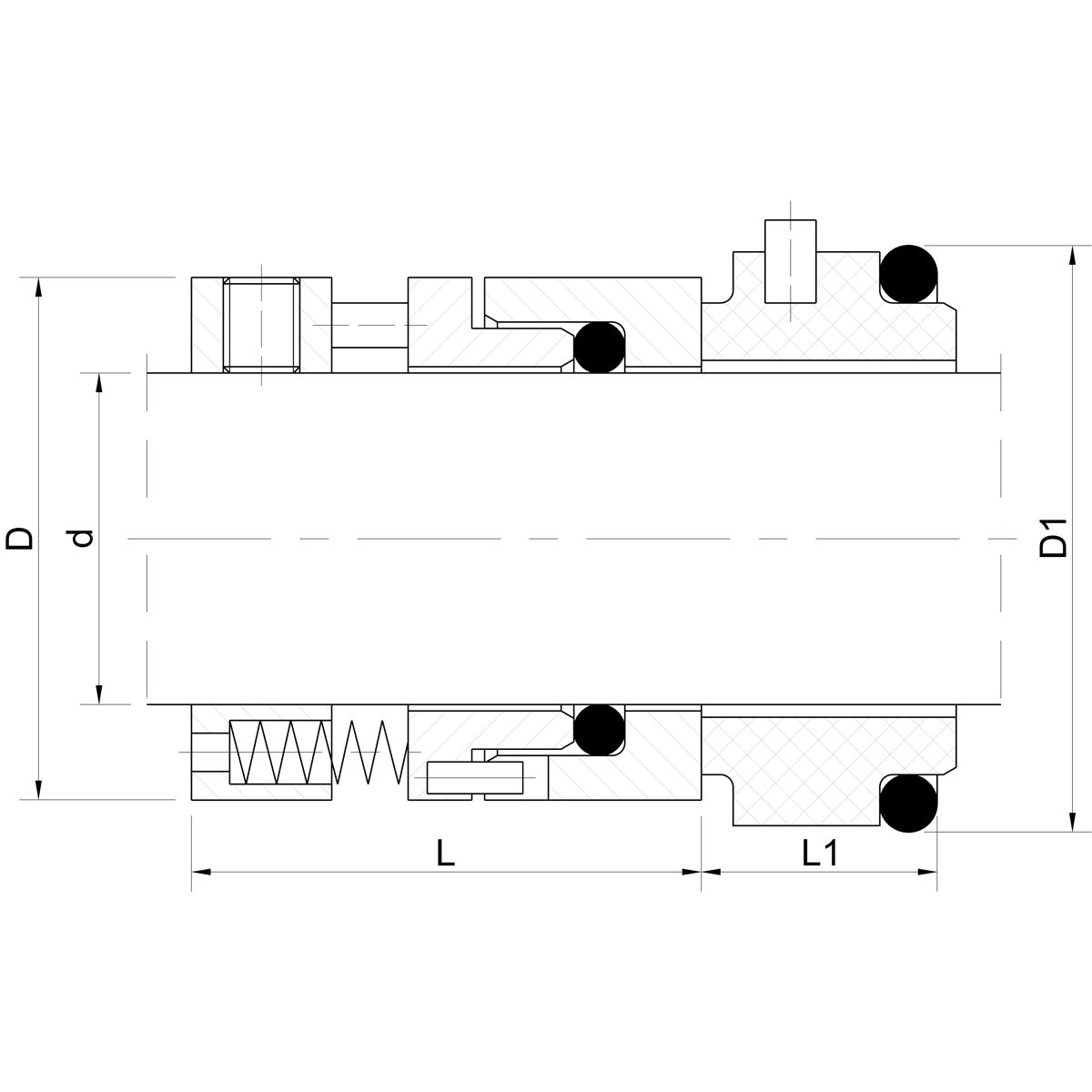

Mechanical seal PARIS (technical drawing)

Product description

Multi Spring, O-ring design, unitized construction, flexible design compensates for shaft misalignment for high performance and longer seal life. Also available in a balanced design.

Stationary Seats

  • RU1 (standard)
