O-ring mounted seals

Mechanical seal MILAN (o-ring mounted seals)

Technical features

  • Single seal
  • Unbalanced
  • Bi-directional
  • To DIN 24960

Operating limits

  • P = 217 PSI
  • T = -95 to 320°F
  • V = 65 ft/s
Description Materials
Primary rings silicon carbide, ceramic, carbon graphite, stainless
Mating rings silicon carbide, carbon graphite
Secondary seal NBR, EPDM, Viton
Metal parts Stainless 304

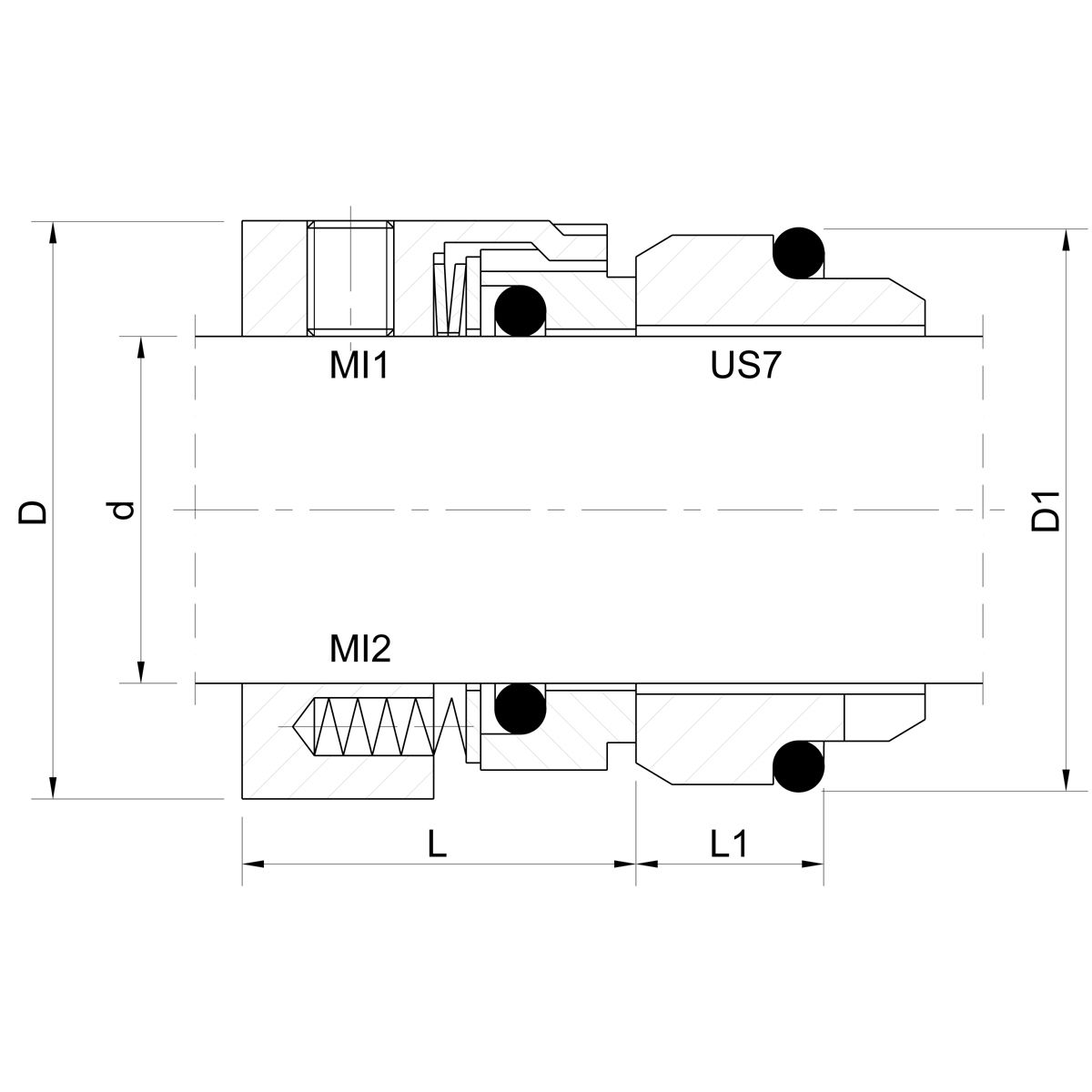

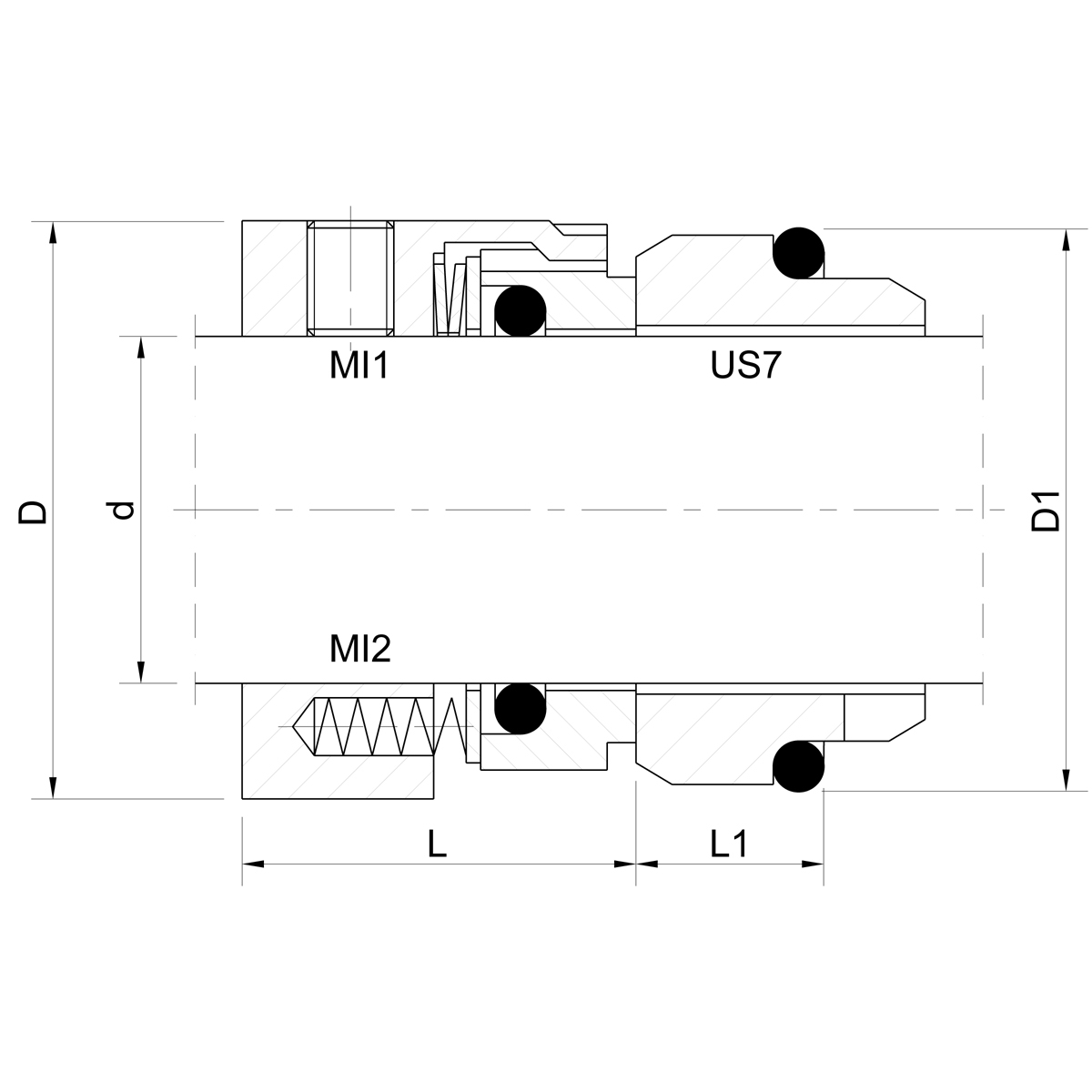

Mechanical seal MILAN (technical drawing)

Product description

Multi Spring, O-ring design, unitized construction, flexible design compensates for shaft misalignment for high performance and longer seal life. Also available in a balanced design.

Available products

  • Milan 1 (MI1)
  • Milan 2 (MI2)

Stationary Seats

  • US7 (standard)
  • US9 (carbon only)
  • US8 (carbide face shrink-fitted)
  • US3, US5, US10 (carbon only)
