New York

Elastomer bellows seals

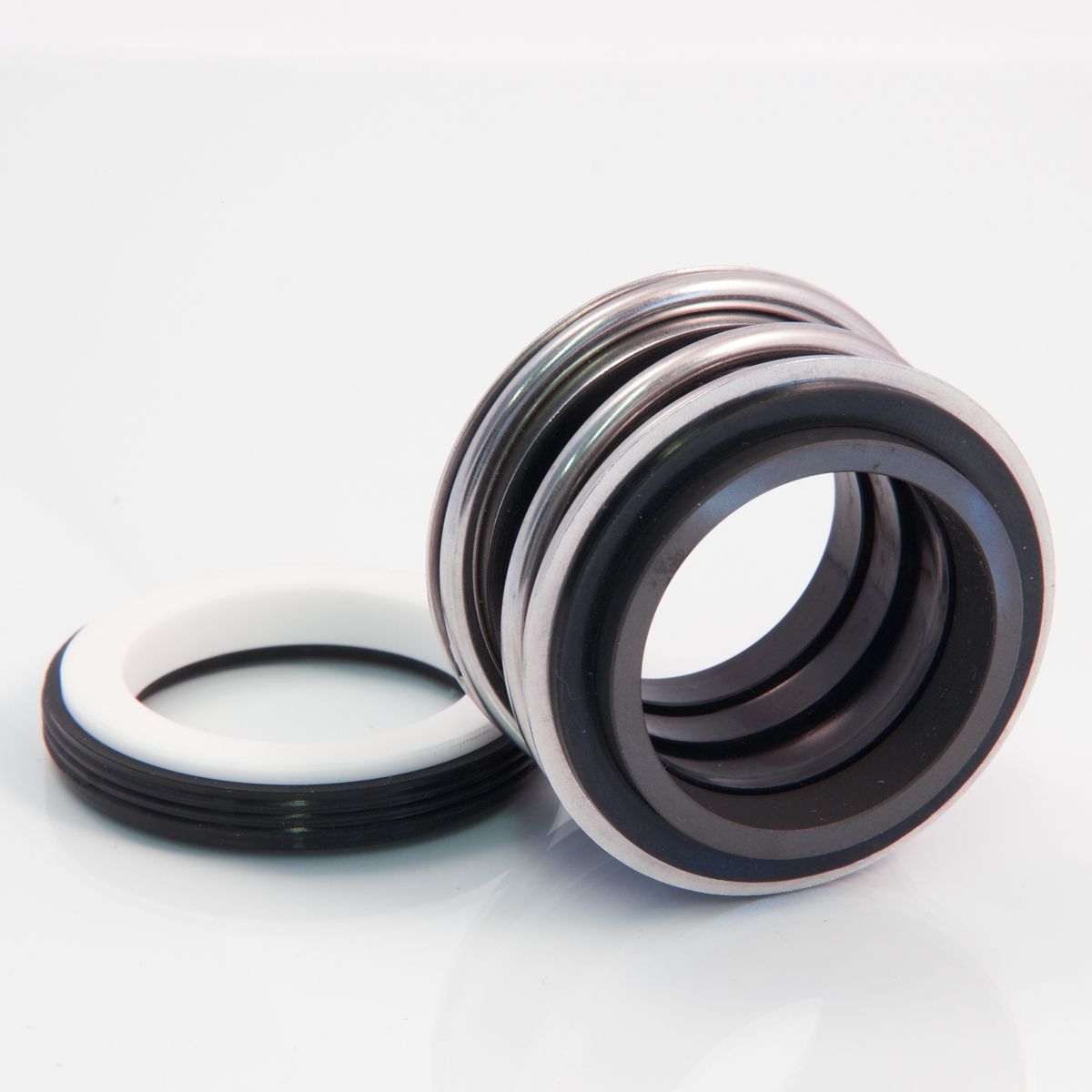

Mechanical seal NEW YORK (elastomer bellows seals)

Technical features

  • Single seal
  • Unbalanced
  • Spring enclosed
  • Elastomer bellows

Operating limits

  • P = 174 PSI
  • T = -95 to 320°F
  • V = 32 ft/s
Description Materials
Primary rings silicon carbide, tungsten carbide, carbon graphite
Mating rings silicon carbide, ceramic, carbon graphite, stainless stell
Secondary seal NBR, EPDM, Viton
Metal parts Stainless 304

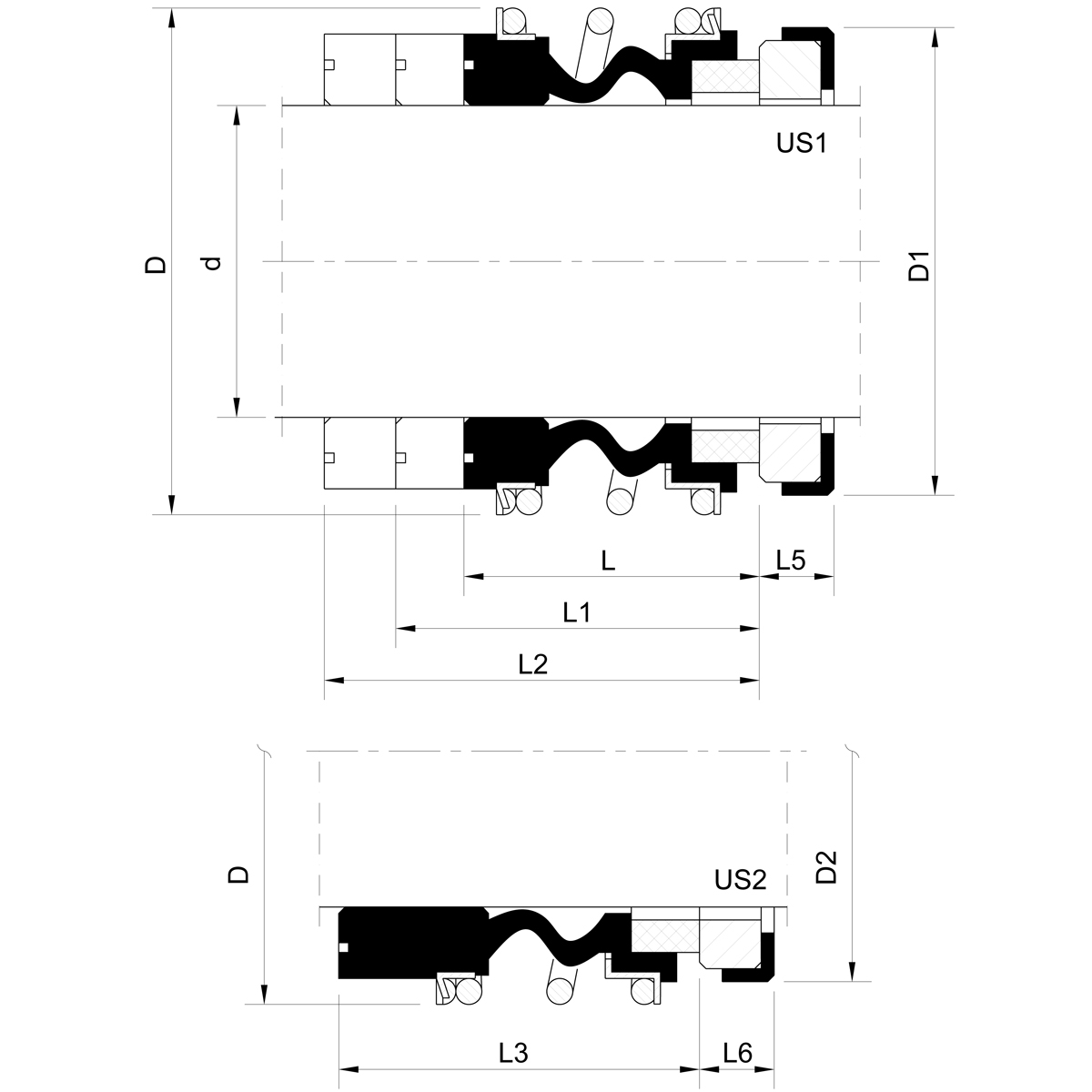

Mechanical seal NEW YORK (technical drawing)

Product description

Compact, unitized, single spring, elastomer bellows seal. The factory-assembled, one piece design permits fast, easy installation and the full-convolution elastomer bellows provide maximum flexibility in compensating for shaft movement and wear.


Available products

  • New York 1 (NY1)
  • New York 2 (NY2)
  • New York 3 (NY3)
  • New York 4 (NY4)

Stationary Seats

  • US1 (to DIN 24960, standard for NY1, NY2, NY3)
  • US2 (standard for NY4)
  • US5, US6, US7 (to DIN 24960)
  • US3
product detail [pdf: 176.64 KB]

complete catalog [pdf: 5.71 KB]
