Single coil spring seals

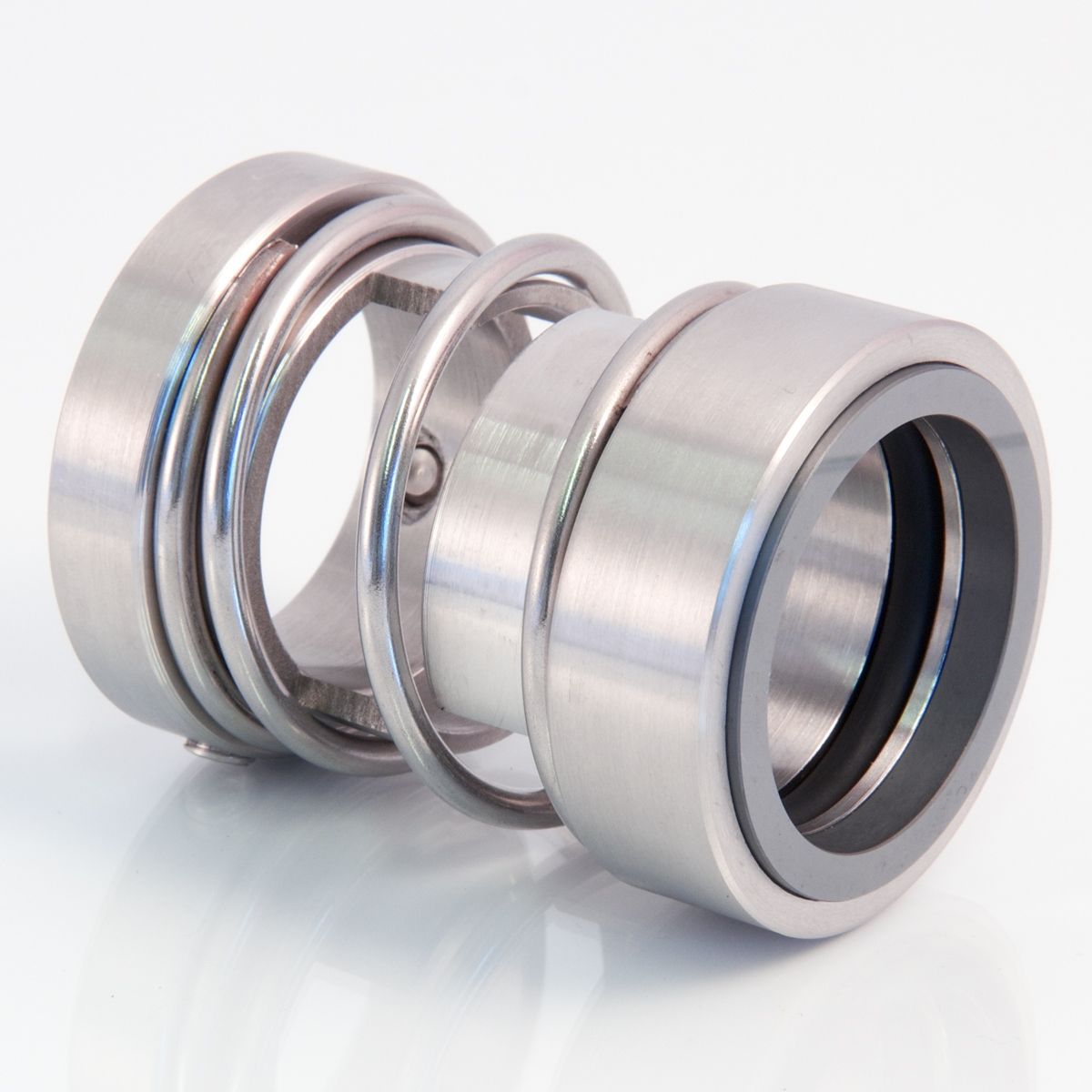

Mechanical seal DETROIT (single coil spring seals)

Technical features

  • Single seal
  • Unbalanced
  • Bi-directional
  • Bayonet drive
  • To DIN 24960

Operating limits

  • P = 174 PSI
  • T = -95 to 320°F
  • V = 65 ft/s
Description Materials
Primary rings silicon carbide, tungsten carbide
Mating rings silicon carbide, carbon graphite, tungsten carbide
Secondary seal NBR, EPDM, Viton
Metal parts Stainless 304

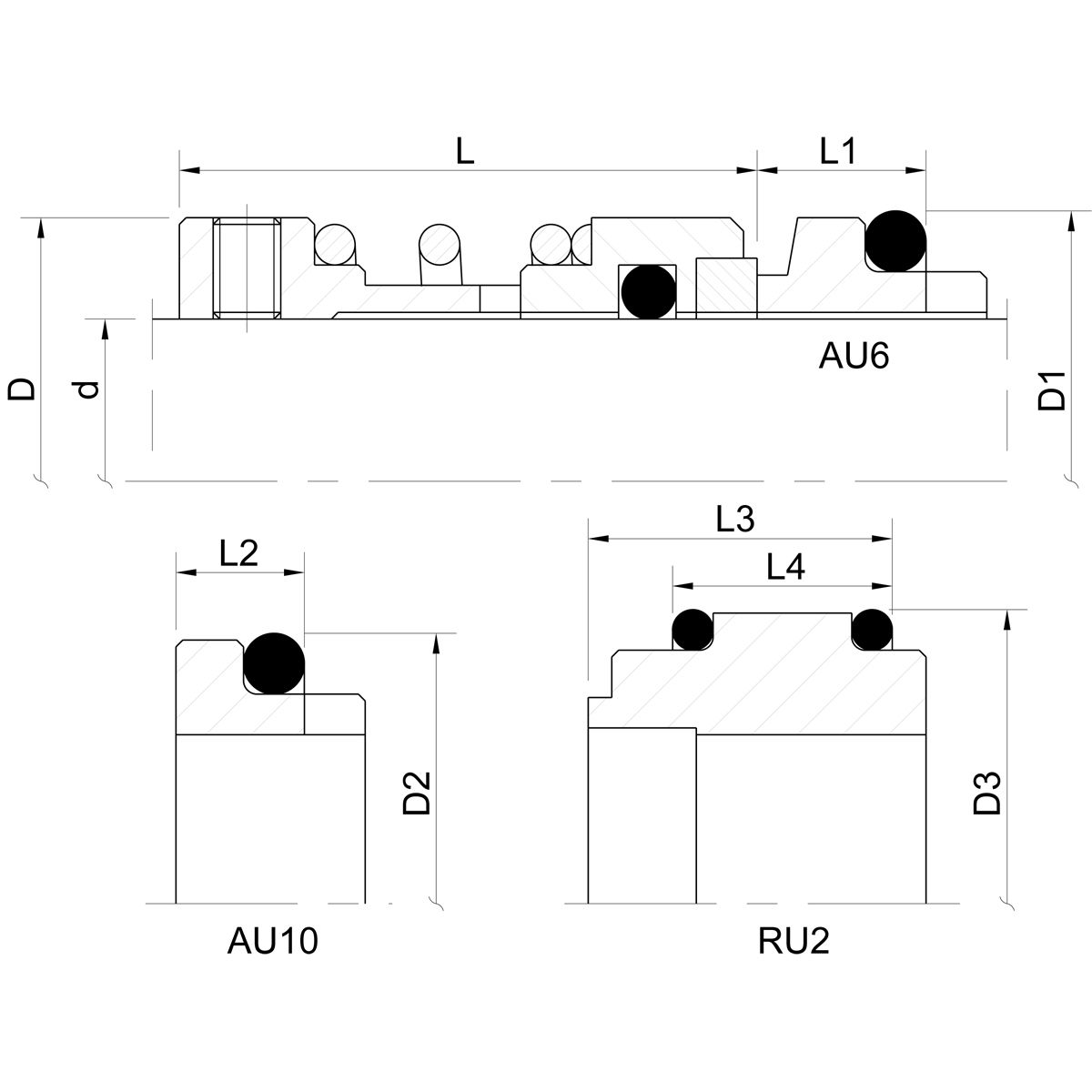

Mechanical seal DETROIT (technical drawing)

Product description

The Conical Spring ‘O’-Ring Mounted Type Seals offered by Cityline are extremely popular seals. These robust, technically procient seals.

The proven e cient design and wide choice of ‘O’-Ring and face materials enable these seals to be utilised in a large variety of applications. Suited for pumps, mixers, agitators, compressors and other rotary shaft equipment.

Stationary Seats

  • AU6 (Monolithic)
  • AU10 (Monolithic) for metric shaft size
  • RU2 (Monolithic)
  • AU7 (Insert) for metric shaft size
  • RU3 (Insert) for metric shaft size
  • FR1 for imperial shaft size
