Los Angeles

Conical spring o-ring mounted seals

Technical features

• Single seal
• Unbalanced
• Conical spring
• Uni-directional
• To DIN 24960

Operating limits

• P = 145 PSI
• T = -95 to 320°F
• V = 32 ft/s

Description	Materials
Primary rings	silicon carbide, tungsten carbide, carbon graphite, stainless
Mating rings	silicon carbide, ceramic, carbon graphite, stainless
Secondary seal	NBR, EPDM, Viton
Metal parts	Stainless 304

Product description

The Conical Spring ‘O’-Ring Mounted Type Seals offered by Cityline are extremely popular seals. These robust, technically procient seals.

The proven e cient design and wide choice of ‘O’-Ring and face materials enable these seals to be utilised in a large variety of applications. Suited for pumps, mixers, agitators, compressors and other rotary shaft equipment.

Available products

• Los Angeles 1 (LA1)
• Los Angeles 2 (LA2)
• Los Angeles 3 (LA3)

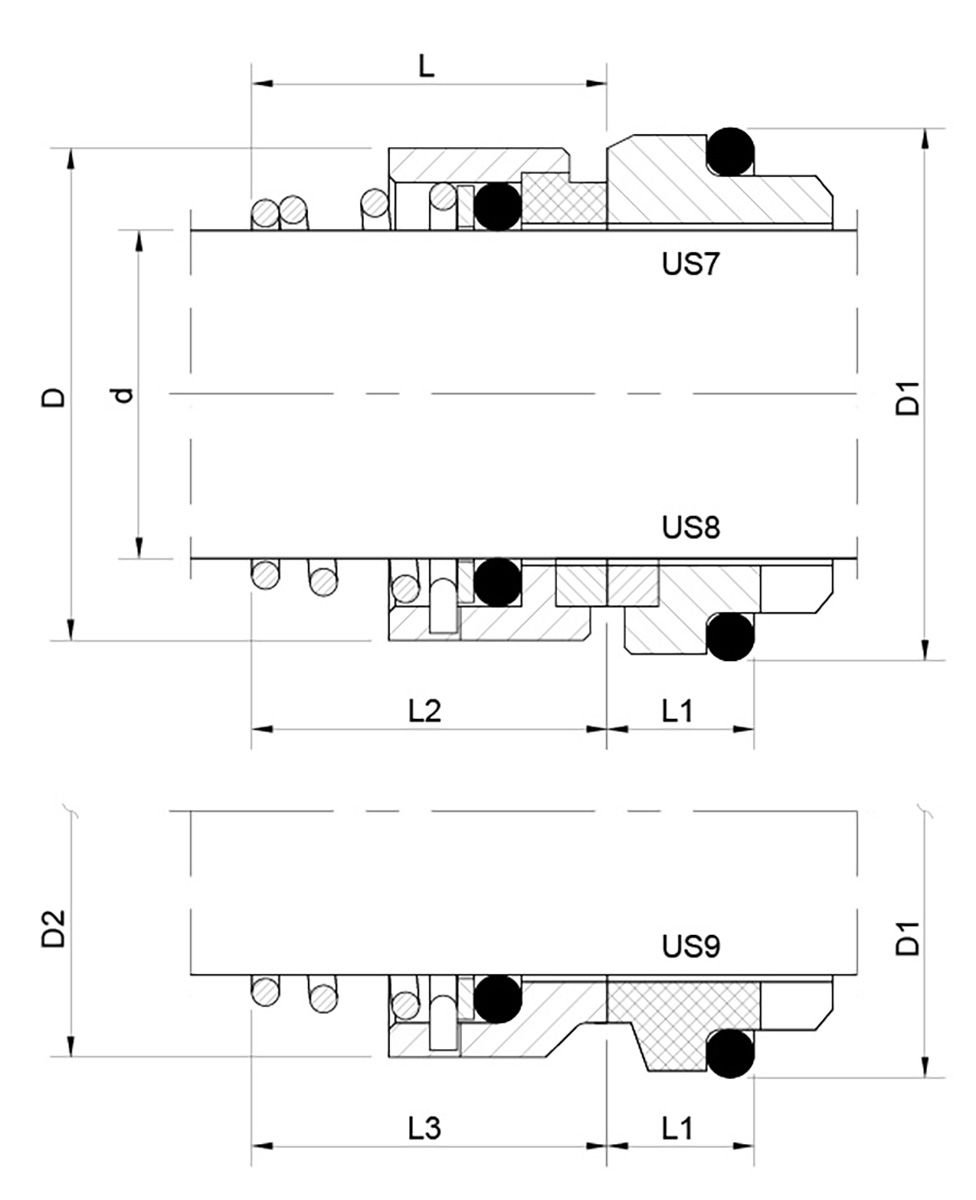

Stationary Seats

• For LA1: US9 (standard, carbon only), US10 (carbon only)
• For LA2: US5, US7 (standard), US8 (carbide face shrink-fitted), US3
• For LA3: US5, US7 (standard), US8 (carbide face shrink-fitted), US9 (carbon only), US3, US10 (carbon only)

product detail [pdf: 169.49 KB] complete catalog [pdf: 5.71 KB]
